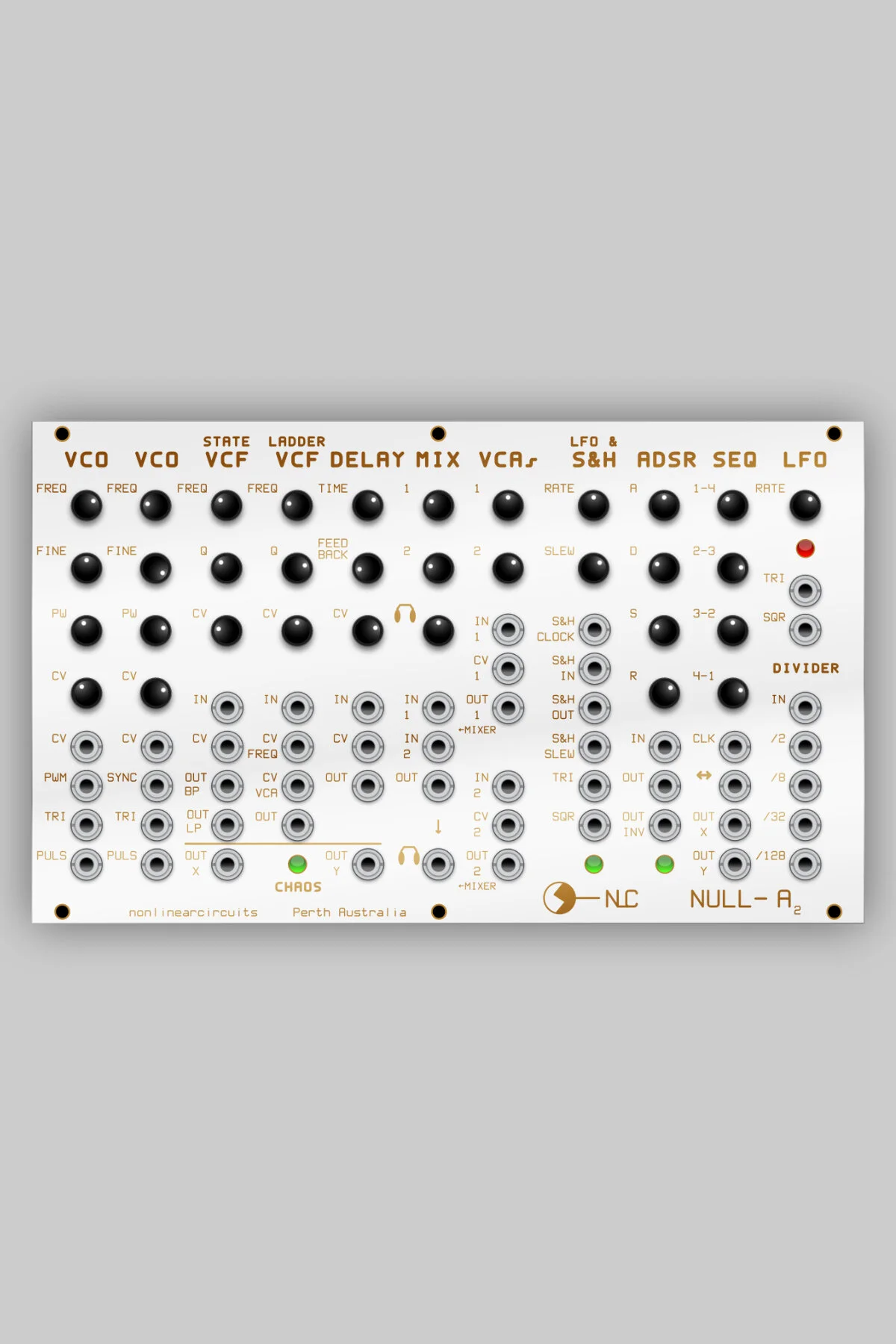

Null-A2
Description/Usage
42hp
2 VCOs
1 state variable VCF
1 ladder VCF
1 VC Delay
3 VCAs
2 LFOs
Mixer
Headphone amp
Sequencer
Clock Divider
Sample & Hold (S&H)
Sloth chaos generator
It does not feature MIDI, micro-processors or any software.
Current draw:
+12V rail - 135mA
-12V rail - 90mA
There are several presets that run between the switches of the jacks. If you insert a patch-cable into either jack the preset is disconnected.
The interesting one is the signals from the Sequencer, Sloth chaos and Tri from LFO2 are mixed and fed to the S&H sample input. This means it is continually generating stepped and smooth CVs (for there is a Slew pot) that are different but related to everything else that is going on.
The Clock Divider gives divisions of /2, /8, /32 and /128.
The Sequencer has 4 stages but the direction control can be used to make it count forwards and backwards enabling more complex sequences. In normal operation, the ‘x’ output gives the CV generated by the stages 1 thru to 4, meanwhile the ‘y’ output will give a CV signal generated by stages 4 thru to 1.
The VC Delay can be used to generate reverb type sounds but can also be pushed into making all sorts of unexpected zipper noises and effects when the Time and Feedback pots are turn high.
The third VCA is built into the input of the Ladder VCF. If nothing is patched into the ‘CV VCA’ input, the VCA is always on.
The Sloth Chaos is a very slow CV generator, it can be used to liven up a patch and create slowly evolving sounds. It cannot be controlled, it does what it wants.
Black & gold panels are available at no extra cost. If one is required please use the contact button to let me know.
