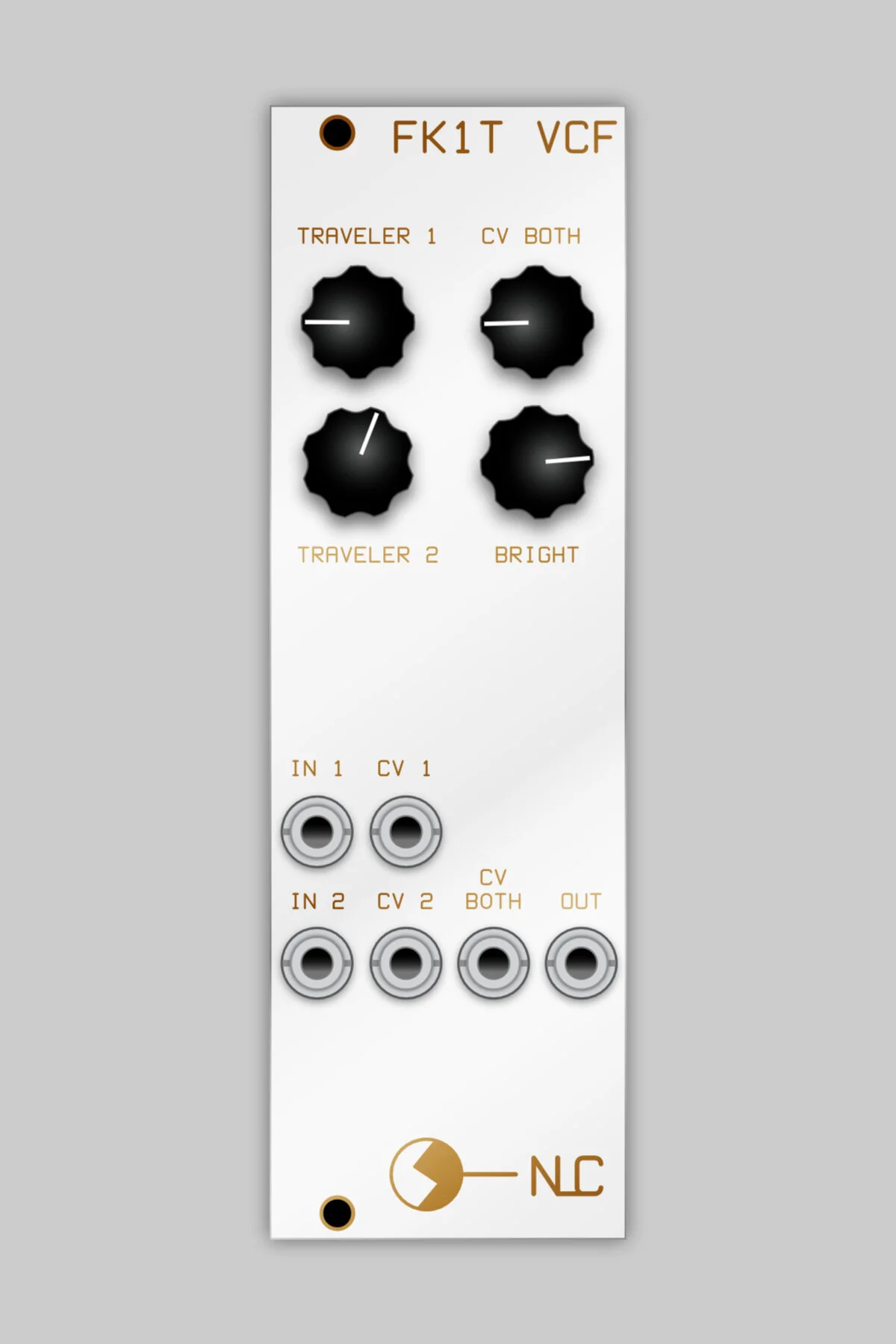

FK1T VCF

from $18.00

Description/Usage

8hp

This has a core based on the Korg FK-1 pedal, which is a similar VCF to the ones found in the 800dv, 770 and 700 synthesizers. These VCFs have low pass and high pass stages in series. The main difference is this version uses vactrols as the variable resistors. Listen to the demo below, it is a great filter.

DIY

  1. Build guide / BOM (pdf)

  2. Panel Template

Package:

Description/Usage

8hp

This has a core based on the Korg FK-1 pedal, which is a similar VCF to the ones found in the 800dv, 770 and 700 synthesizers. These VCFs have low pass and high pass stages in series. The main difference is this version uses vactrols as the variable resistors. Listen to the demo below, it is a great filter.

DIY

  1. Build guide / BOM (pdf)

  2. Panel Template

This filter is based on the korg Fk-1 pedal. It shared the same topology as the other Korg filters found in the 800dv and 700, but used 4 vactrols........oh!...
