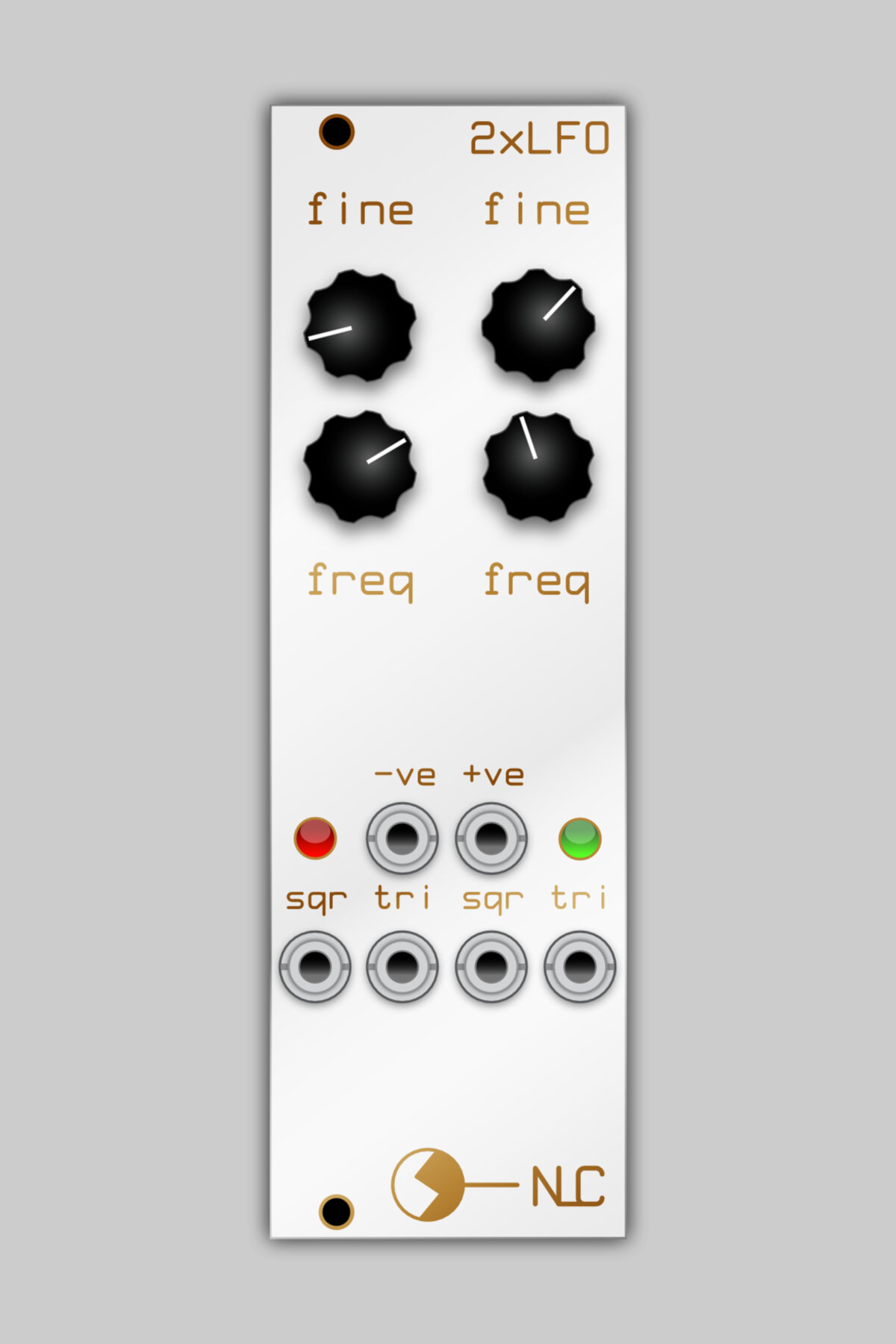

Dual LFO

from $10.00

DESCRIPTION/USAGE

8hp

Two wide ranging LFOs; from approx 830 Hz down to 0.02Hz (1 cycle every 50 seconds), giving tri and square waveforms. There is also a difference rectifier onboard which gives signal corresponding to the positive and negative aspects of the difference between the two tri waves.

All thru holes components, no wiring to do.

DIY

  1. BOM/Build Guide

  2. Panel Template

Package:

DESCRIPTION/USAGE

8hp

Two wide ranging LFOs; from approx 830 Hz down to 0.02Hz (1 cycle every 50 seconds), giving tri and square waveforms. There is also a difference rectifier onboard which gives signal corresponding to the positive and negative aspects of the difference between the two tri waves.

All thru holes components, no wiring to do.

DIY

  1. BOM/Build Guide

  2. Panel Template

Dual LFO with inbuilt difference rectifier, used with VCO and Multiband Distortion Processor. In the 2nd half, one LFO clocks the stepped out of the Sauce of...
